Timber Frame Truss Design

  • Timber Frame Hammer Beam Truss

    Hammer Beam Truss

    Description: Consists of short horizontal beams (hammer beams) projecting from the walls, supporting angled braces that meet at the ridge. No full bottom chord.

    Use: Common in large open spaces like cathedrals or halls.

    Aesthetic: Ornate and grand, often seen in historical or traditional designs.

  • Timber Frame King Post Truss

    King Post Truss

    Description: A simple and commonly used truss with a central vertical post (the "king post") connecting the ridge beam to the bottom chord (tie beam).

    Use: Ideal for small to medium spans, offering a classic and sturdy design.

    Aesthetic: Symmetrical and minimalist.

  • Timber Frame Queen Post Truss

    Queen Post Truss

    Description: Features two vertical posts (the "queen posts") instead of one, with a horizontal straining beam between them for added stability.

    Use: Suitable for slightly longer spans than a king post truss.

    Aesthetic: Open and elegant, with more visual complexity.

  • Timber Frame Scissor Truss

    Scissor Truss

    Description: Composed of two angled beams crossing each other, forming an "X" shape. The bottom chord is absent or raised, creating a vaulted ceiling effect.

    Use: Used for creating dramatic, open spaces with high ceilings.

    Aesthetic: Dynamic and modern while maintaining a rustic appeal.

  • Timber Frame Common Truss

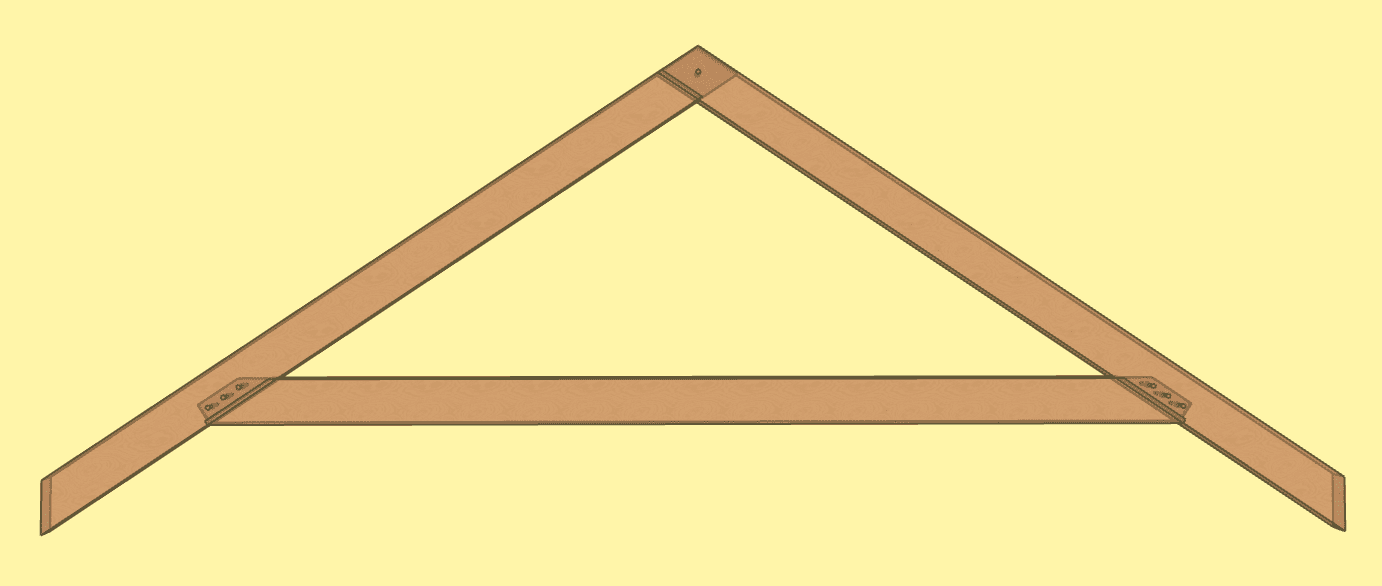

    Common Truss

    Description: A simple design with a horizontal tie beam connecting the two wall plates, preventing outward thrust. May include additional braces or supports.

    Use: Provides maximum structural support for straightforward designs.

    Aesthetic: Simple and functional.

Timber Kits & Packages

Whether your goal is to construct a new timber frame home or renovate your existing residence, JEOHWOOD is here to turn your vision into reality. In fact, each timber frame design can be tailored precisely to meet your unique requirements.

Custom Timber Frame Home Kits

For $80 to $150 per square foot, our custom packages provide everything necessary for constructing the framework of a timber frame home. This includes:

  • Choice of timber material: Douglas Fir, Spruce, or Western Red Cedar

  • Sustainably harvested timbers sourced from forests in British Columbia

  • 3D drawings of the timber frame (approved prior to timber harvesting)

  • Timber fasteners and hardware

  • Detailed 2-D shop drawings and installation drawings

  • Timbers cut, planed, and sized to meet specifications, with joinery as per drawings

  • Trusses test-fitted, disassembled, and packaged for shipping

  • Timber ends sealed with a wax log sealer to prevent excessive checking

  • Lumber treated with two coats of environmentally friendly water-based UV sealer or stain

Timber Frame Accents and Design Elements

If you own a home and wish to infuse it with a personalized touch, integrating timber framing can profoundly elevate a traditional residence, giving it a unique and exceptional character. Timber frame design elements like ceiling beams, roof braces, gable accents, rafter tails, and others can seamlessly blend into both the interior and exterior of your dwelling.

Timber Frame Additions

Another excellent option for existing homeowners is to incorporate a timber frame addition into their structure. JEOHWOOD excels in seamlessly integrating timber framing with any building type, whether it's post and beam, stick-built, or log homes. Introducing a timber frame addition is a wonderful means of infusing customized design elements into your home while simultaneously enhancing its property value.

Are Kits and Packages Customizable?

Timber frame kits are inherently customizable. Whether you are looking to incorporate a few decorative accents or embark on constructing an entire home, you have the freedom to contribute your own ideas to the project. JEOHWOOD provides a range of custom options for timber frame kits, encompassing frames, stairs, wall/roof systems, and specialty wood products.

Timber Frame Kits & Additions

JEOHWOOD is more than excellent carpenters. Our expertise extends to various structures, ranging from quaint rustic cabins to impressive contemporary homes and resorts. We work with ours clients in identifying the right balance between traditional methods and modern techniques. Contact us to discover more about our personalized heavy timber design and commence the journey to creating your timber frame home today!

Timber Frame NOW.

Timber frames are known for their durability and longevity, making them an excellent investment that retain value over time.
